在仅有集成图形显卡的计算机上使用软件时的问题

产品	InstalSystem 5
文章类型	TYPICAL PROBLEMS
版本的最新内容	GOLD Rev. 12.0

Problem description

Users working with InstalSystem 5 software on computers with one available or set as default integrated graphics card could encounter with problems related with general efficiency with program’s stability and with reduced work ergonomy.
The most common symptoms of this type of problems are:

• Application suspension/turn off in the moment of switch the 3D视图,
• Black screen appearance in the 3D视图 or 2D编辑器.

Actual hardware requirements are placed in the article Technical specifications of InstalSystem 5 package.

Solution

Regular graphic card driver update is recommended, despite the solution given below.

Computers equipped with the integrated and not integrated graphics card

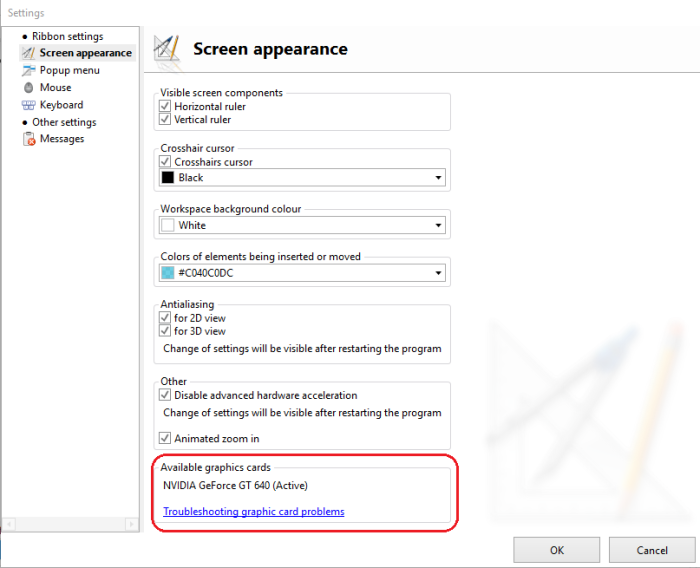

To find out which graphic cards are installed in the computer, please use the information described in 设置:

1. Start the program, choose tab 文件 placed in the top left corner, then please choose the 设置.
2. On the screened setting window, please choose 屏幕外观.




   1. 可用的图形显卡




Global inclusion of not integrated graphic card

This way turns off the auto-managing mechanism of the group installed graphic cards, could influence the set in Windows system energy management schemes and reduce the work time in laptop’s batteries.

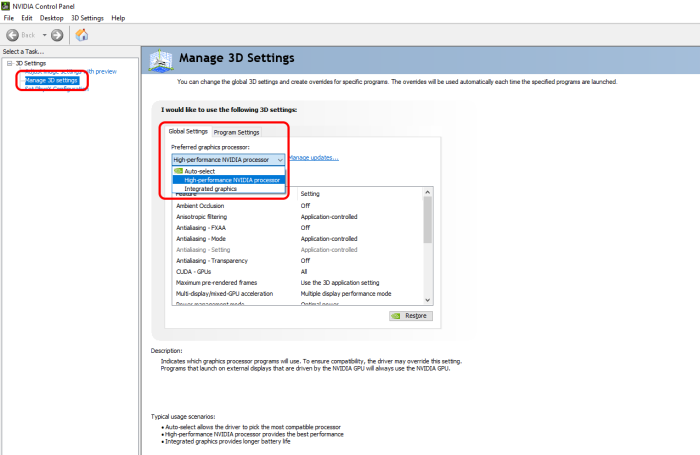

• Example of changes in nVidia graphic card driver.




  2. Global inclusion of not integrated graphic card




Inclusion of not integrated graphic card, only for InstalSystem 5 usage

This way turns off the auto-managing mechanism of the group installed graphic cards, could influence the set in Windows system energy management schemes and reduce the work time in laptop’s batteries.
NOTE: This way must be set every time for installed program version and for each new installed InstalSystem 5 version.

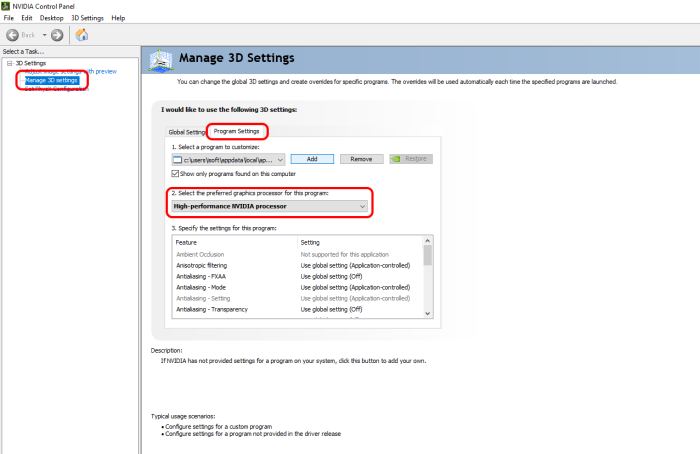

• Example of changes in nVidia graphic card driver.




  3. Turn on the not integrated graphic card only for the InstalSystem 5 version usage




Computers equipted only with integrated graphic card

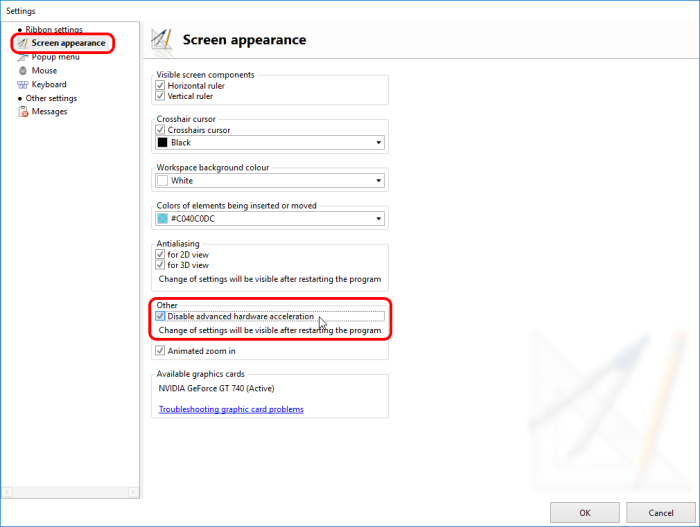

Way out for suspition/turning off application - turning on checkbox

1. Start the program, choose tab 文件 placed in the top left corner, then please choose the 设置.
2. On the screened setting window, please choose 屏幕外观,
3. Choose and confirm your changes by pressing OK.




   4. Turn on




Restarting the InstalSystem 5 Edytor is required.

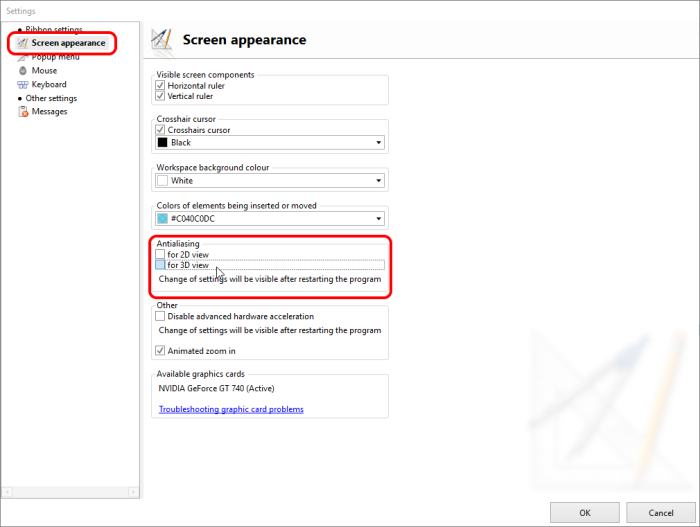

Way out for black screen in 3D视图 or 2D编辑器 - Turning off the option Antialiasing

1. Start the program, choose tab 文件 placed in the top left corner, then please choose the 设置.
2. On the screened setting window, please choose 屏幕外观,
3. Turn off the option Antialiasing 2D视图, Antialiasing 3D视图 and confirm the change, by clicking OK.




   5. Turning off Antialiasing




Restarting the InstalSystem 5 Edytor is required.

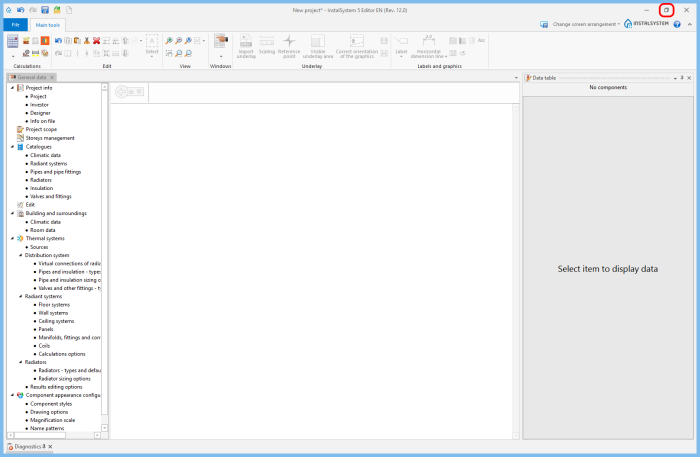

Way out for black screen in 3D视图 or 2D编辑器 - Window work mode

1. Turning on the window work mode in InstalSystem 5 Editor.




   6. Work in window work mode
